Public Building
Haikou City, Hainan Province, China
Winter 2018


︎奖项:2018年美国声学协会建筑比赛首奖

Coral Theatre


珊瑚剧场位于海南海旁,面朝大海,人们于此聚集,同时可欣赏表演和优美的自然风光。我们分别参考了珊瑚礁的形态和结构,从而设计出剧场的声景和社交空间。珊瑚礁是由微小的海洋动物建造而成的水下结构,是地球上最为多元的栖息地。在石珊瑚(即硬珊瑚)中,珊瑚息肉产生碳酸钙结构,增强和保护柔软、活泼的生物体,维持生境之活力。在设计中,我们采用了类近的隔音外壳,保护活跃于内部的不同公民活动。
Located near the seaside of Hainan, looking to the ocean, the project is intended to create a place for people to gather and appreciate the performance as well as the sounding nature environment. Our design is inspired by coral reef both acoustically, in terms of form, and socially, in terms of organization. Coral reefs are underwater structures built by tiny sea animals. They are the most diverse habitats on the planet. In stony corals, also known as hard corals, the coral polyps produce a skeleton composed of calcium carbonate to strengthen and protect the soft, lively organisms that sustain the vitality of the habitats. In the design, we envision a similar soundproof shell to protect the lively civic activities happening inside.

︎ 从前广场看建筑,Public from the pubic plaza

︎ 鸟瞰图,Bird eye view
在珊瑚礁这一生态系统当中,各种活动与物种共生。同样地,市政建筑不仅代表权威(政府的权力),而且还是公民空间和活跃的社会生态系统,让不同种族、文化、性别和年龄的人们于此举办各种活动。设计旨在打造一个开放的空间,借助透明外立面材料和带遮盖的下沉式广场,让人们更为亲近、相互聆听。 Coral reefs are also co-habit ecosystems of various activities and species. Similarly, we envision a municipal building that is not only a place of authority (the power of government), but also a civic space and a lively social ecosystem, which hosts various activities and people from different races, cultures, genders and ages. We want to create an open space that will give an impression of being close to people and being willing to hear people’s opinion through using the transparent exterior material and the welcoming covered sunken plaza.

︎ 剧场前广场,Public plaza
︎ 总平面,Master Plan

在剧院本身的设计中,我们希望强调公民空间和平等的概念。设计参考了古罗马礼堂(“聆听的地方”),扇形开放式舞台为表演提供极佳视野效果。礼堂的形状也非常适合举办各类会议。听众可与讲者建立亲密的关系,清晰地聆听演讲内容。 Also, We would like to emphasize the concept of civic space and equality in the design of the theatre itself. In this part, we use ancient Roman auditoriums as our reference ("place for hearing"). The fan-shape open stage provides a good view into the proscenium opening for the performance. The auditorium also has a great circular shape for municipal conferences. Every audience member feels close to the lecturers and can hear the speech clearly.

剧院总共设有224个座位(均为扶手椅)。第一排和最后一排的椅子均可移动,为轮椅使用者提供灵活选择。第一排头部净空设计提供了开阔的视野。 There are 224 seats in total (with all arm chairs). First row and last row use removable chairs, which will provide the flexibility for wheelchair users to choose their seats. The constant rise formula with first row head clearance provides unobstructed vision.

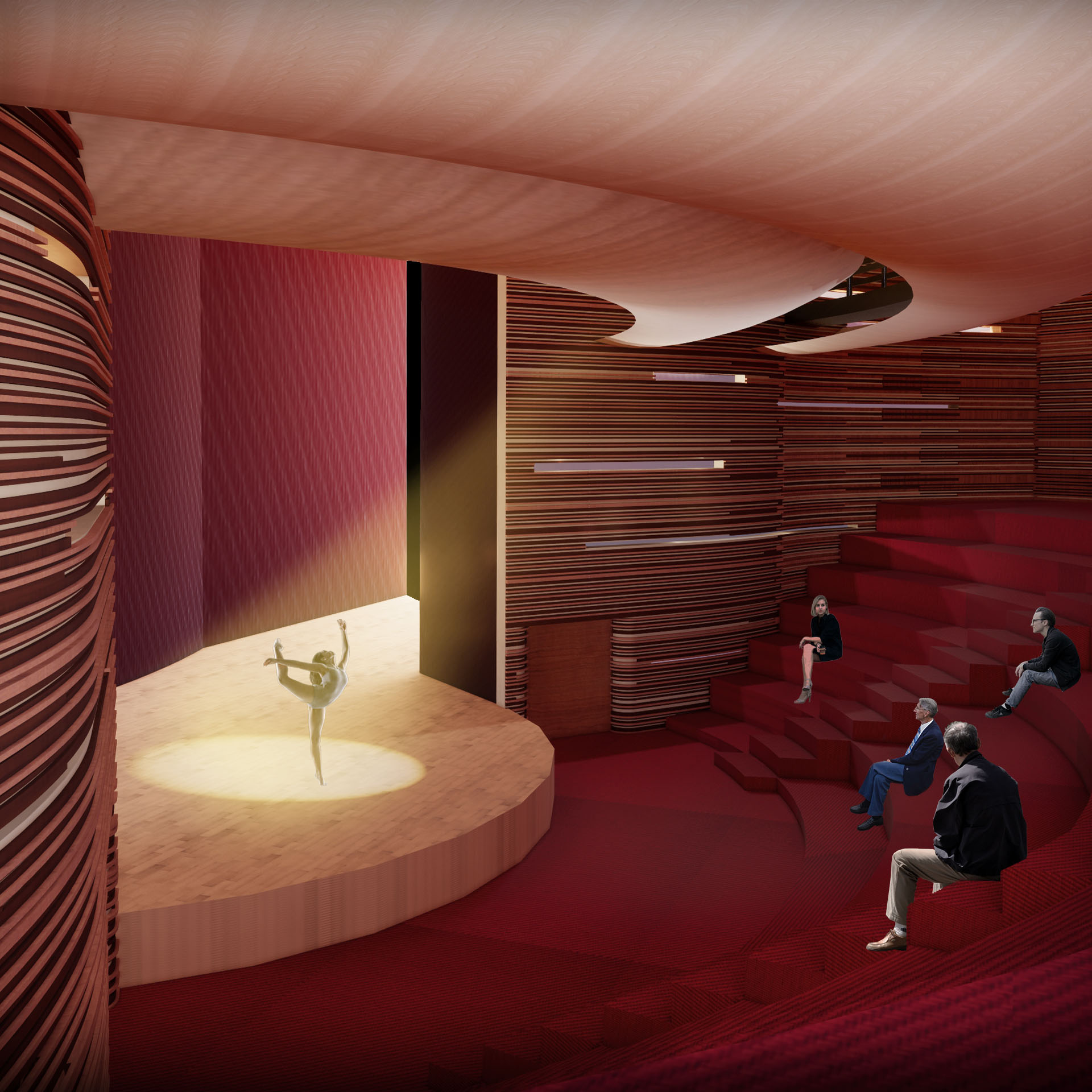

︎ 剧场空间 Theatre space

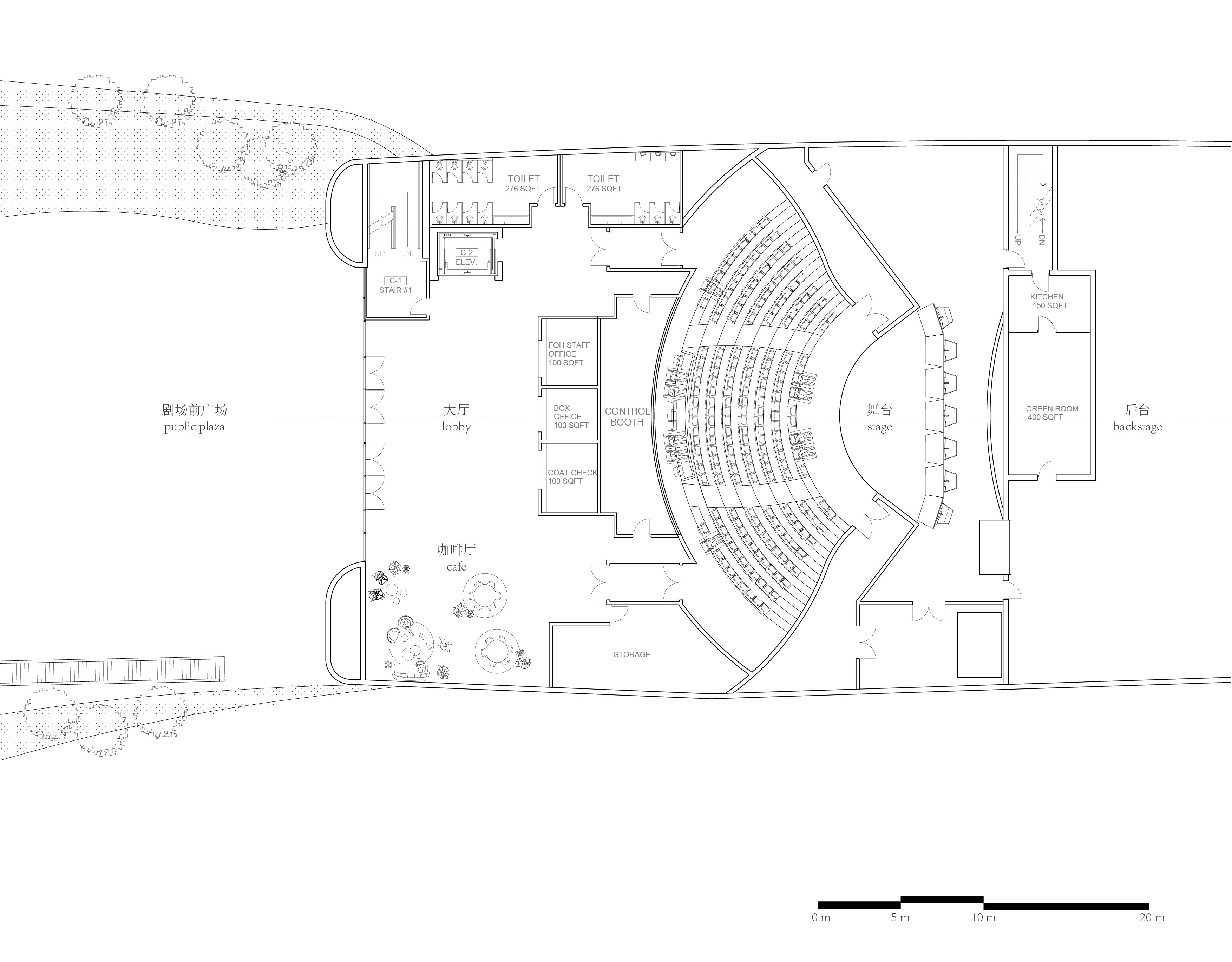

︎ 剧场平面 Theatre plan
项目名称:珊瑚剧场 Coral Theatre
设计时间:2018年冬 Winter 2018
项目地址:中国,海南,海口 Haikou City, Hainan Province, China
建筑面积:5,270 m2
合作者:Cross Wang, Roxy Jia


更多信息 For more information http://www.newmanfund.org/student-design-competitions/2018-sdc-results/




Public Building
Tonle Sap Lake, Cambodia
Winter 2015


︎Award: Eleven Magazine People’s choice award,
Exhibited in Boston Architectural College


Bamboo Floating Village Center


在这个项目中,我们用已有的水上村落作为灵感,学习它建筑形态的适应性和多样性,利用本地材料竹子建造多种空间和功能单元,组成一个由二十个单元构成的圆形社区组团,满足当地所需的教育、研究、接待游客等多种功能的同时,亦形成相连接的社区空间,顺应水涨水落、气候变化,为当地的居民提供服务。

The concept of clusters on the water is inspired by the existing phenomenon of the autonomously formed villages on the lake. We take the adaptability and diversity from there and propose to improve current situation by building clusters as unified structures that are well organized, properly accessible with well-distributed programs. The cluster is composed of 20 units, all together completing a circular configuration.

All the units are literally movable like boats, as in they can freely switch their positions within the cluster, or even move away to somewhere else when certain needs emerge. The units are integrated by a standardized framework and well connected with each other; in the meanwhile they each function independently.


︎ 从湖上看项目,Perspective from the lake

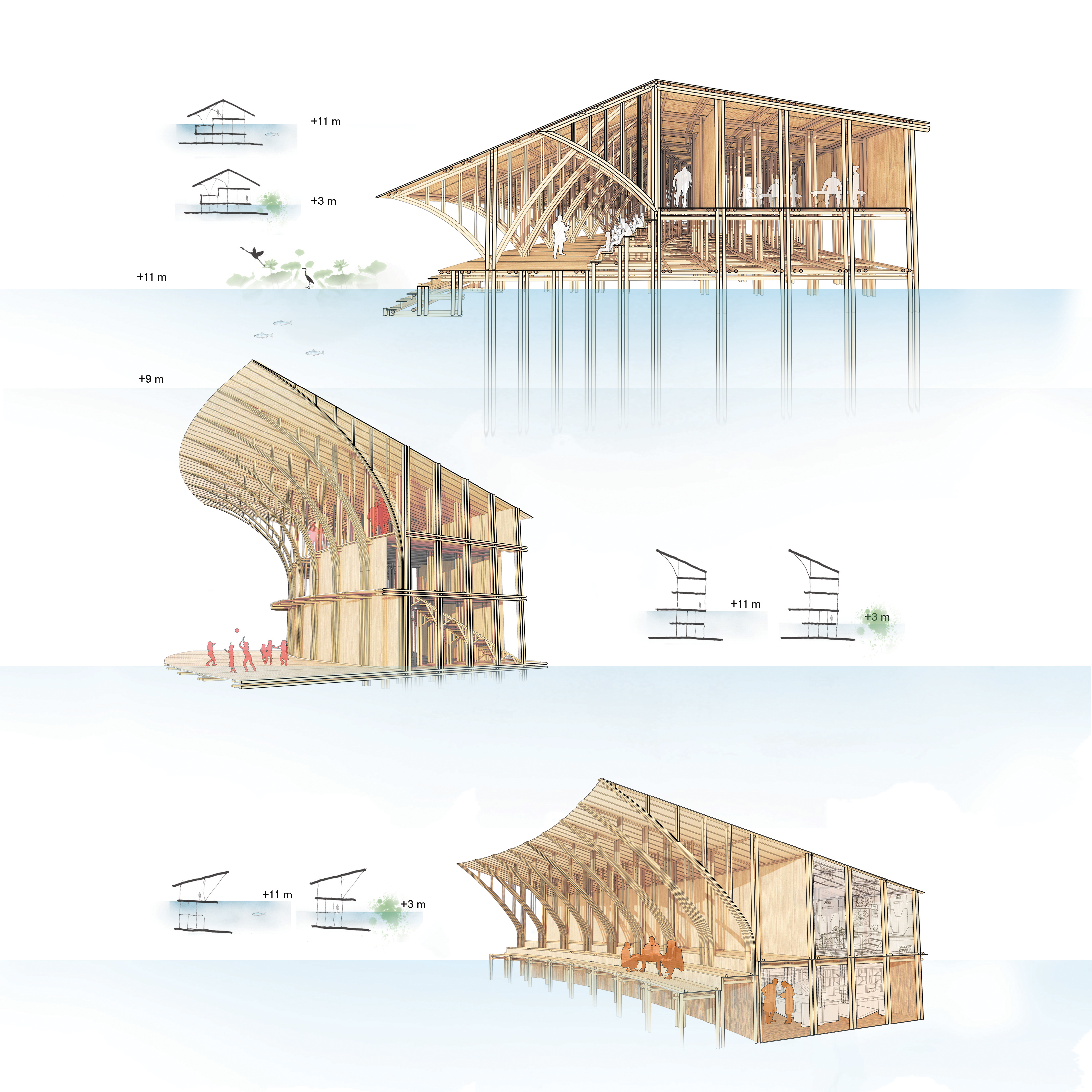

︎ 不同的空间功能单元,Different space and function units

︎ 在连续的圆形屋檐下,Under the continous circular roof
︎平面, Floor plan
项目名称: 竹之村社区中心 Bamboo Floating Village Center
设计时间:2015年冬 Winter 2015
项目地址:柬埔寨, 洞里萨湖 Tonle Sap Lake, Cambodia
建筑面积:1,600 m2
合作者:祝沈含 Shenhan Zhu


更多信息 For more information
https://bustler.net/news/4588/these-winning-ideas-offer-floating-solutions-to-aid-cambodia-s-tonl-233-sap-lake-community





Public Building
Shenzhen, China
Winter, 2018


Shenzhen Box Community Centre


是位于深圳市新开发区中心的社区中心,为当地政府提供办公空间同时,也是公众活动场所。设计旨在增进政府与市民之间的互动和凝聚力。
The Floating Box is a community centre situated at the heart of the newly developed district in Shenzhen, providing office spaces for the local government as well as activity spaces for the public. The design intends  to promote interactions and cohesion between government and citizen .

受爱德华·霍尔的人类维度理论启发,该设计基于我们对空间尺度的研究,开发了一系列适合多尺度用途、促进亲密交流、小组讨论和公共活动的空间。
Beginning with an investigation on the scale of space based on Edward Hall’s theory of the human dimensions, the design develops a series of spaces suitable for various scales of use, close conversations, group discussions and public events.

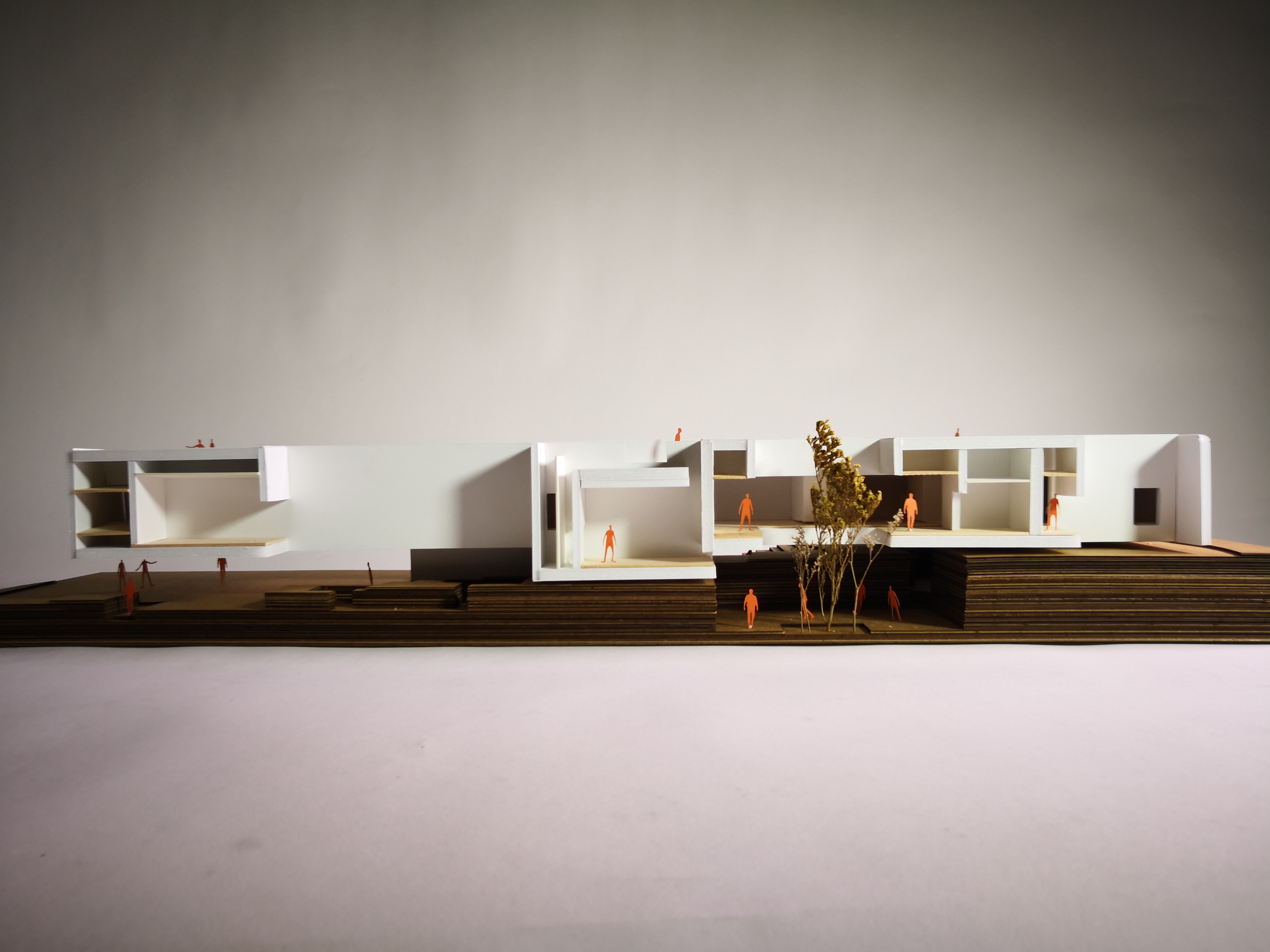

︎ 建筑剖面模型,Section model

建筑一分为二,“城市屋顶”用作地方当局的办公室和房间,而“城市游乐场”则是开放空间,其大小各异的口袋广场相对于街道的纵深各有不同。公众可进入“屋顶”遮蔽下的“游乐场”,于全年举办各类活动。无论是户外表演,还是社交舞蹈,都可以在“屋顶”和“游乐场”之间的灵活空间中进行。“屋顶”与地面相接之处,公共空间延伸到建筑中,方便当地居民进入。
The building consists of two halves, the ‘urban roof’ which houses the offices and rooms for the local authorities, and the ‘urban playscape’, an open landscape of differently sized pocket plazas with varying depths in relation to the streets. The public are invited into the ‘playscape’ sheltered by the ‘roof’, allowing organised events to take place throughout the year. The variety of in-between spaces of the ‘roof’ and ‘playscape’ are suitable for a range of different activities from outdoor performance to social dance. Where the ‘roof’ meets the ground, public spaces extend into the building, welcoming the local residents in.

︎ 口袋公园空间,Pocket plaza space

建筑让地方当局与市民更加紧密,从而增进相互了解和信任。当局的私人空间和当地活动的公共空间不再分开,而是紧密地交织在一起。
Through architecture, local authorities are no longer isolated from the public, encouraging more understanding and building more trust. The private spaces of the authorities and the public spaces of the local activities are no longer separated, but closely intertwined.
︎总平面,Master plan

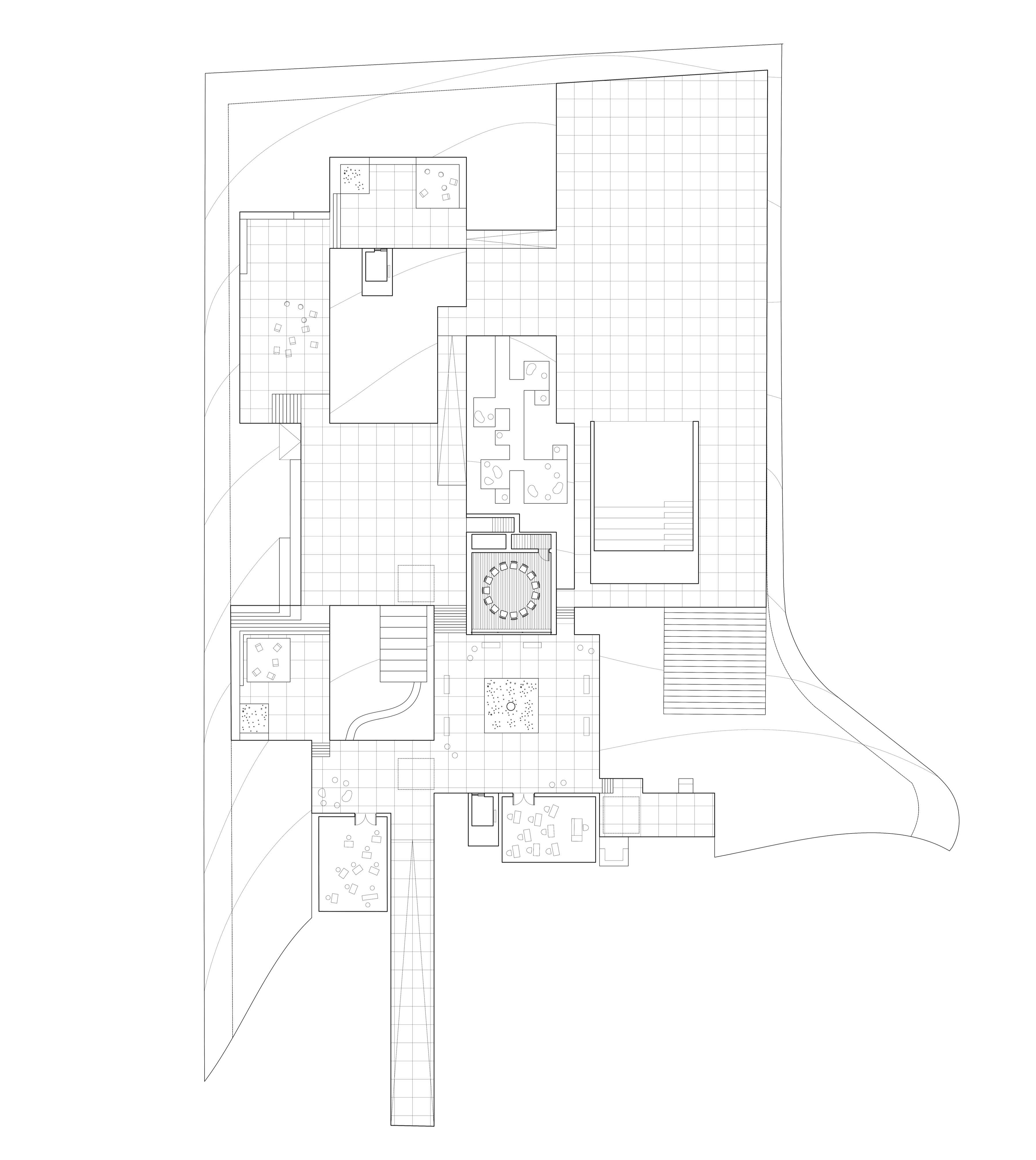

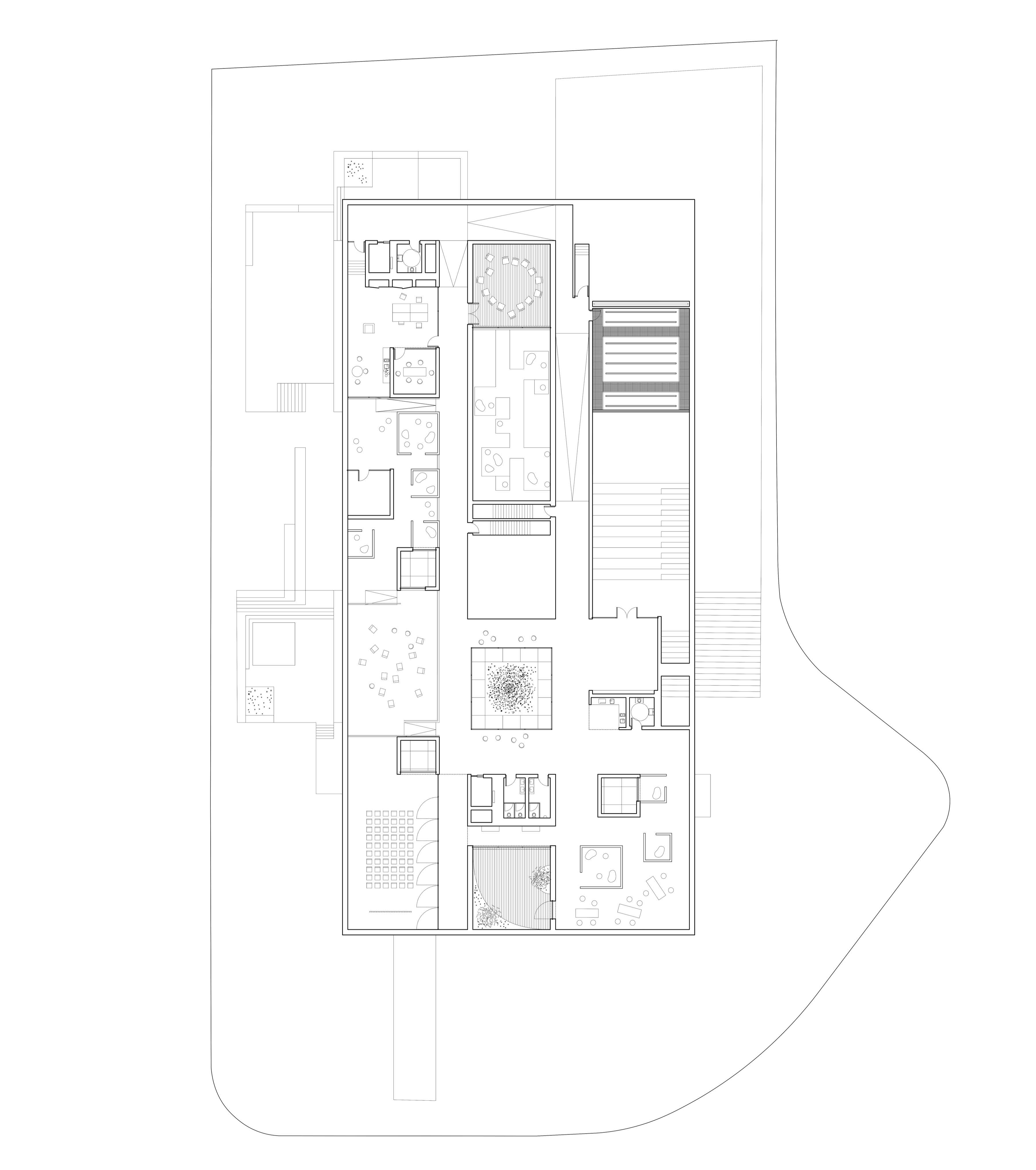

︎一层平面, First floor plan


项目名称:深圳盒子社区中心 Shenzhen Community Centre
设计时间:2018年冬 Winter, 2018
项目地址:中国,深圳 Shenzhen,
建筑面积:1,900 m2



Public Building
New York, USA
Spring, 2018


Grain Research
&
Community Hub


纽约谷物研究与社区中心致力于研究农业谷物,提高公众对全球粮食安全的意识。设计试图满足两种不同的空间需求——研究实验室对隐私的要求,同时通过外展空间吸引公众。建筑核心为受保护的研究实验室,其周围另置不同的公共空间,从而达到整合两种不同功能的设计目的。
The project is a facility dedicated to the research on agricultural grains and promotion of public awareness on global food security. There are two opposing conditions to fulfill - the requirements for privacy in the research labs; and the need to be inviting for the public in the outreach spaces. Our design integrates the two functions by creating a solid research core where laboratories are protected and wrapping a series of public accessible spaces around.

︎ 从街道看建筑 ,perspective from the street

公共空间的入口始于地面,直接从繁忙街道的交汇处趋导人流。随着人们拾级而上,他们穿梭于谷物保育园和各种展览空间当中,感受着建筑为其提供的无缝式体验。在专属的开放空间当中,公众可直接观察核心中工作着的研究人员,而研究人员也可从核心内部到达每个外展楼层。
The entrance into the public space begins on the ground level, drawing people directly in from the busy junction. Their experiences through the grain nursery and various exhibition spaces are seamless as they ascend gradually. Through dedicated openings, the public is able to directly observe the work of the researchers in the core while the researchers are also able to gain access to every exterior floor from within the core.

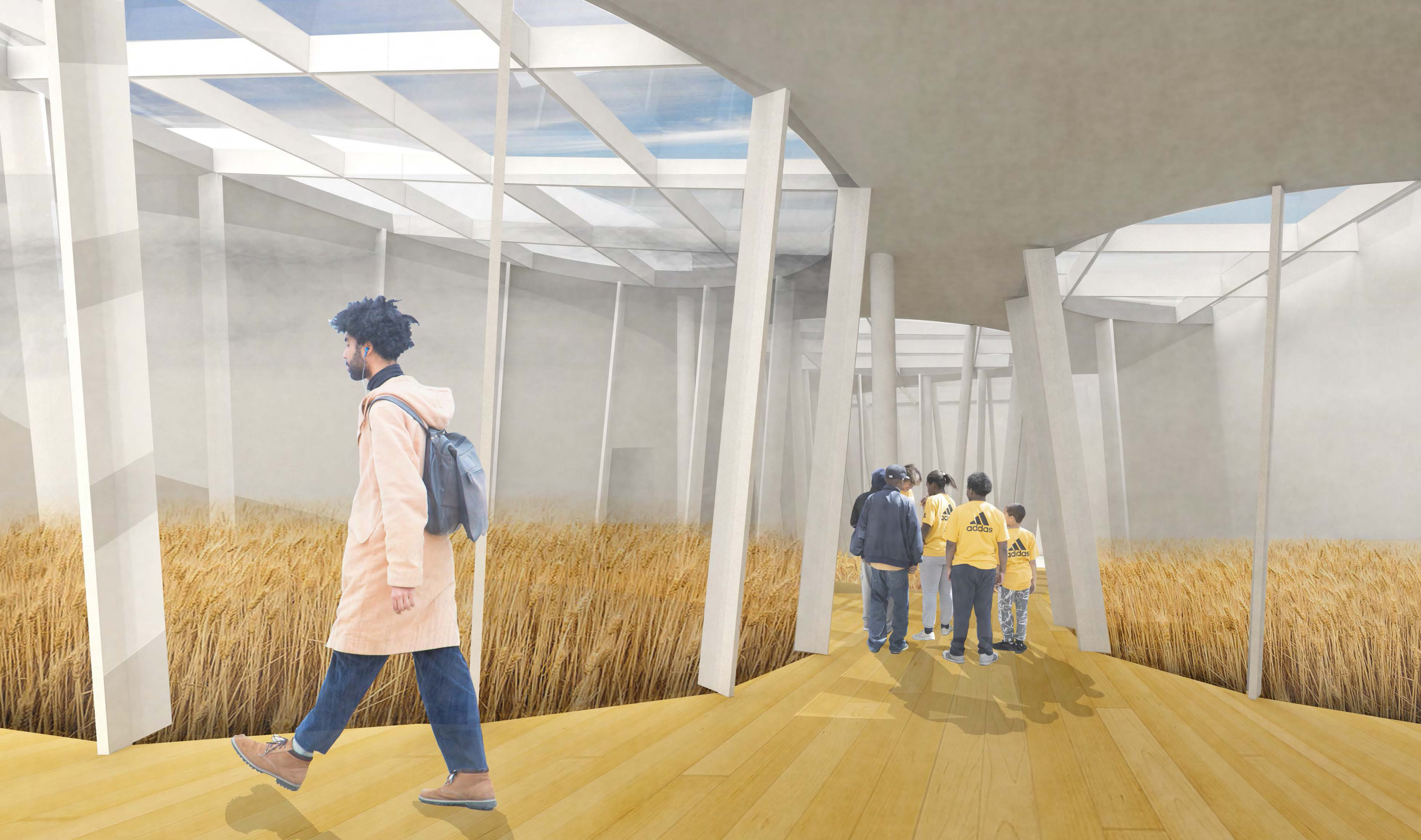

︎ 种子培育空间,Grain nursery


大楼底层另设有一个公用厨房,供社区居民使用。现场收获的谷物也通过这些厨房分发给公众,并通过举办各种烹饪活动,促进社区邻里间的互动。
The building also houses a communal kitchen on the ground level where locals are encouraged to cook together. Grains harvested onsite are also dispensed to the public within these kitchens, promoting interactions through culinary activities.

︎共享厨房空间,Communal kitchen


该建筑为连接公共和私人空间的桥梁,其设计为研究项目赋予更多的社会功能,促进来自不同背景的人们之间的理解,增强社会凝聚力。
The architecture serves as a bridge to connect the public and the private, integrating more social functions into the research programme, promoting understanding between people of different backgrounds and improving social cohesion.

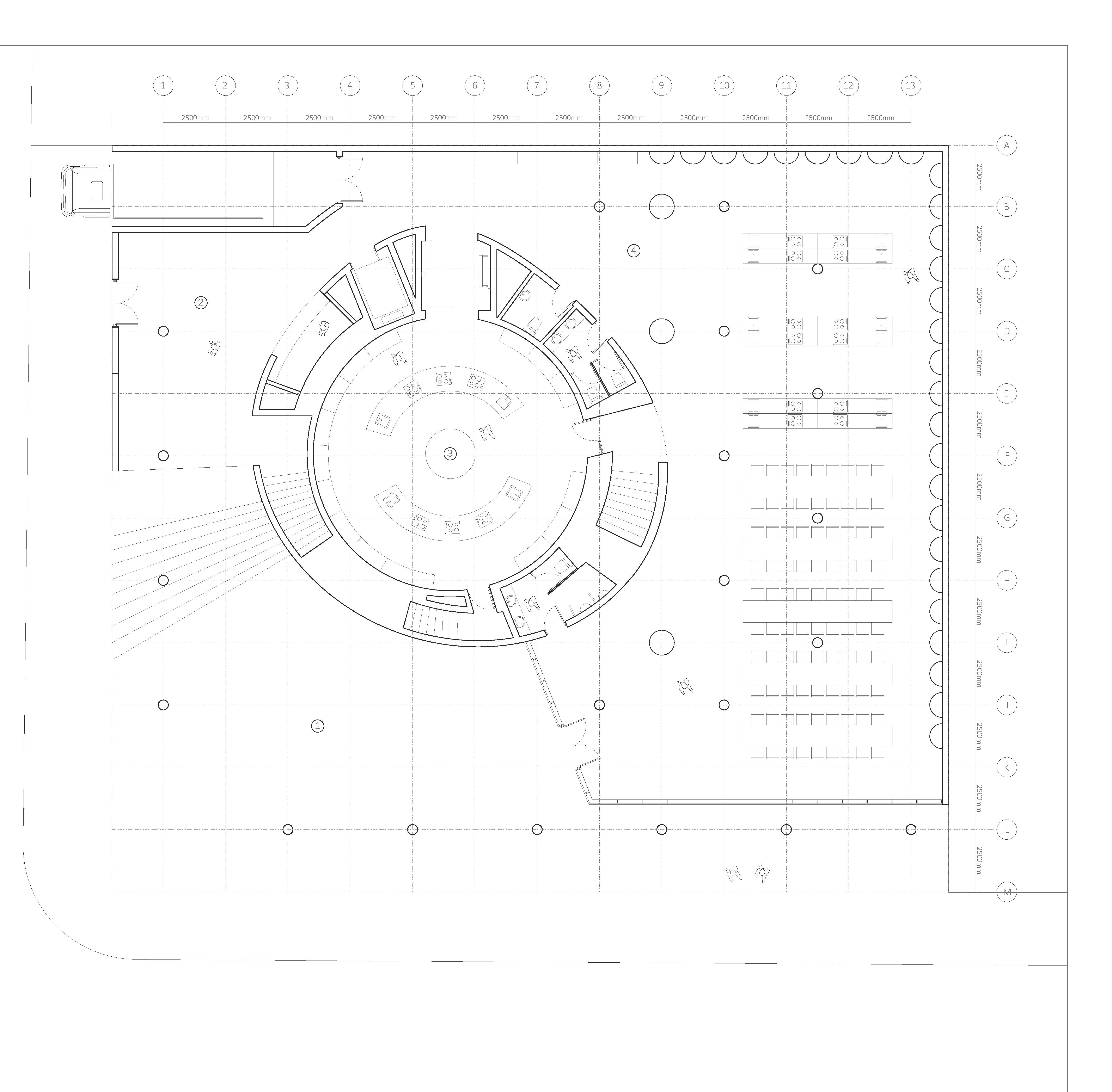

︎一层平面, First floor plan
︎ 二层平面,Second floor plan

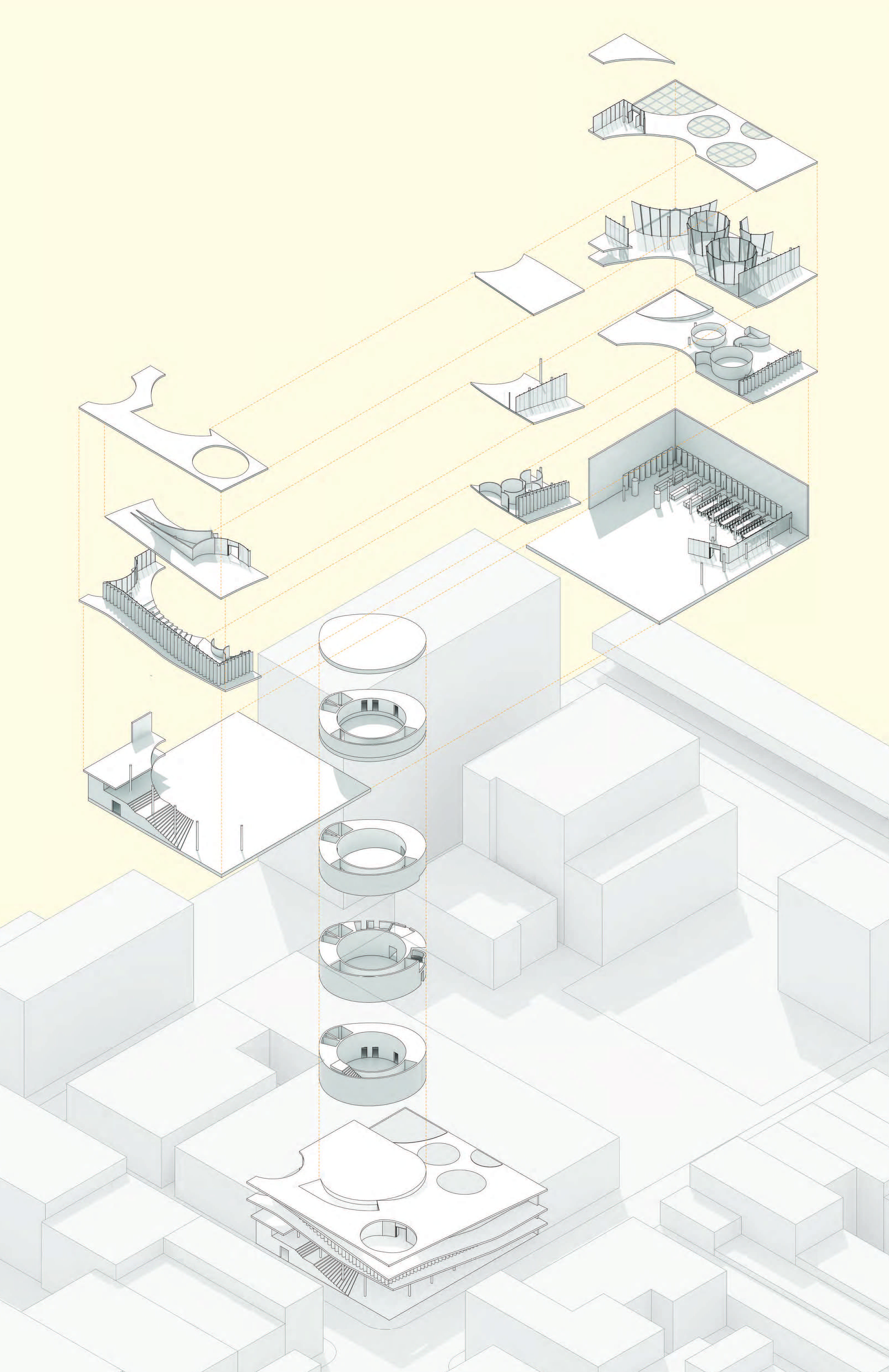

︎ 分解轴测图,Exploded axonometric

项目名称: 纽约谷物研究与社区中心
                   Grain Research & Community Hub
设计时间:2018年春  Spring 2018
项目地址:美国 | 纽约 New York, USA
建筑面积:3,500 m2



Art & Exhibition Space
Yale School of Architecture Gallery
2019. 1. 10 - 2. 16


HUTONGism


与通常意义上的展览不同,我们在鲁道夫楼中的展览设计“胡同主义-北京的城市之屋”并非只是二维的图纸展示,而是塑造一种空间,将胡同街道和房屋的空间尺度迁移到这个展览空间中。 Reflex-arc curated and installed "HUTONGism – Urban House in Beijing" in Rudolph Hall, Yale University. The exhibition featured our research on the hutongs in Beijing. Besides photos, drawings and models, the transition of the spaces as one walks through also forms part of the experience of the exhibition.

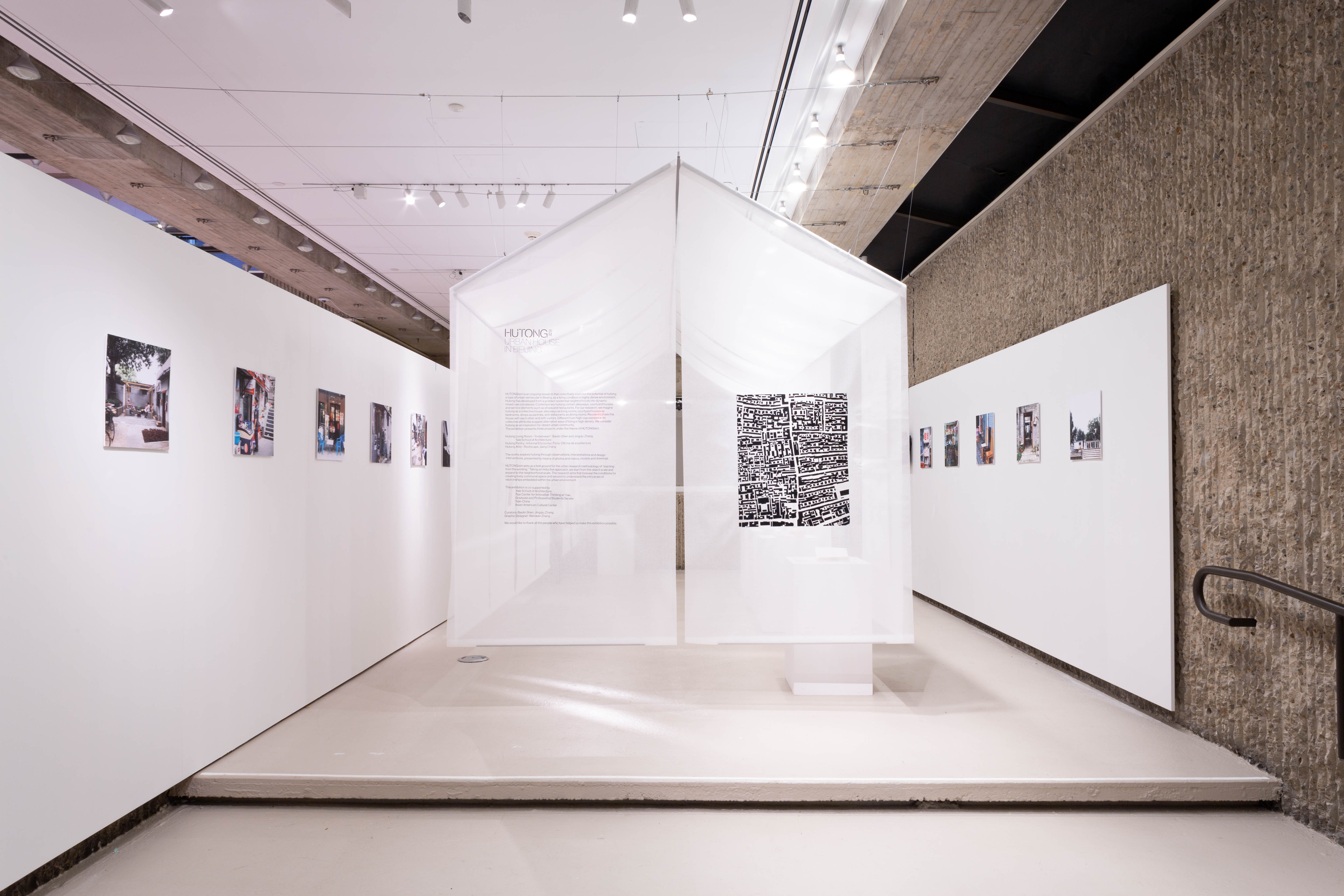

︎ 展览前部空间,Front view of the exhibition

受到展览空间宽4.3米的限制,我们将“悬浮房子”居中,留出两条宽约一米的“巷子空间”,用以播放胡同的影像,其半透明材质使得来访者想起传统四合院房屋的外轮廓。使得参观者在进入主要的展览空间前,能够充分浸染在胡同的影像和空间体验当中,从形式上赋予这一空间象征和意义。
With the gallery space limited to 4.3 meters in width, we inserted a "floating house" into the centre of the space, leaving 1-meter wide "alleyways" on either side. The translucent fabric is reminiscent of the silhouette of the traditional courtyard houses (siheyuan) that are native to the hutongs. Visitors will also experience an impression of daily life in hutong as they step into the "alleyways" where they will be immersed in the series of photos and videos of the unique spaces and elements in the hutong.

︎ 展览前部空间,Front view of the exhibition

顺着位于房屋两侧的入口,参观者可以进入主要的展览空间。半透明的布料垂下、围合而成空间,营造出一种亲密和亲切的感觉。如此小尺度的空间,将根据不同时段的摆设为不同的功能服务,例如,在放置模型陈设台时,它变成展览空间;在放置椅子和展示屏幕时,它是演讲空间;而放置用餐长桌时,它变成聚会空间。空间本身跟人有着丰富和亲密的互动。同样的,我们对于小空间的多面性和多样性的模仿,正正是在胡同发生的日常与生活。在那里,同样的空间、院子、街道或是房屋,在不同的时段,根据不同的需求,也可变成住宅、商铺或餐厅。

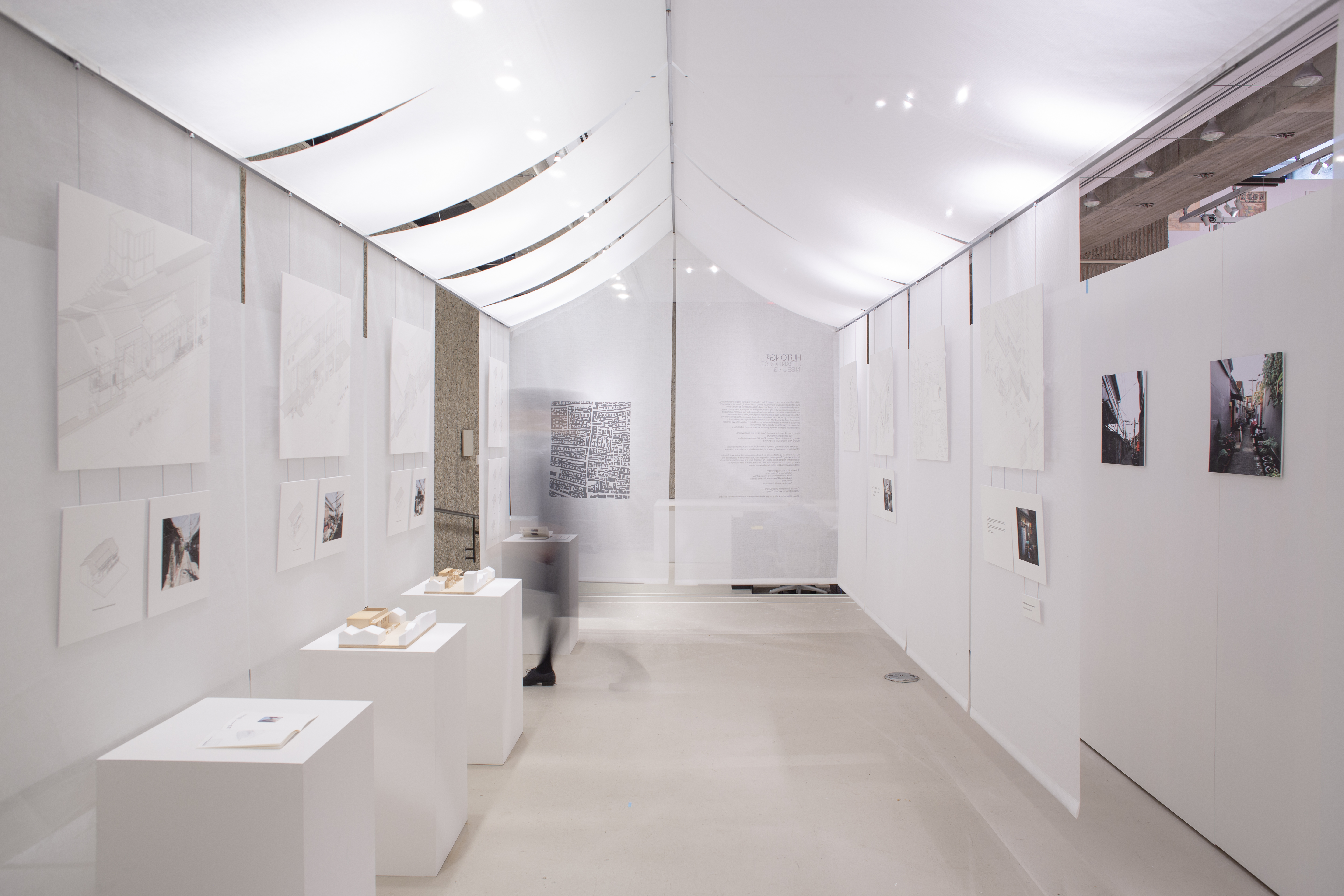

Upon entering the main exhibition space, a sense of intimacy and closeness is experienced, wrapped by translucent fabric. The translucency not only created a sense of enclosure but also maintained a connection to the space outside. Various types of activities can happen within this small space as it was reconfigured for different functions. It is an exhibition gallery with pedestals, a lecture space with chairs, and a social space with a long table at its centre. The flexibility in its space is reflective of the hutongs where the same space is used for recreation, pop-up retail and restaurant extensions at different times of the day and year.

︎ 悬挂影像的“小巷” Alleyway of photos and video


展览空间的设计选择了半透明的麻质布料,带着朦胧的东方美感,与鲁道夫楼粗野主义的混凝土表面形成对比和反差,代表着是东方和西方的对话、形式感和非形式感的对话,而这种材料上的对话,恰恰也是整个展览概念的一部分,与展览的内容中关于城市非形式肌理的呈现相互呼应。
The smoothness and translucency of flex fabric is a distinct contrast to the rough texture of the brutalist architecture of Rudolph Hall. Metaphorically, it is a conversation between the formal, which is the Rudolph Building, and the informal, which is the urban house in Beijing. The materiality is the part of the concept that resonates with the exhibition contents.

︎ 材料质感,Materiality

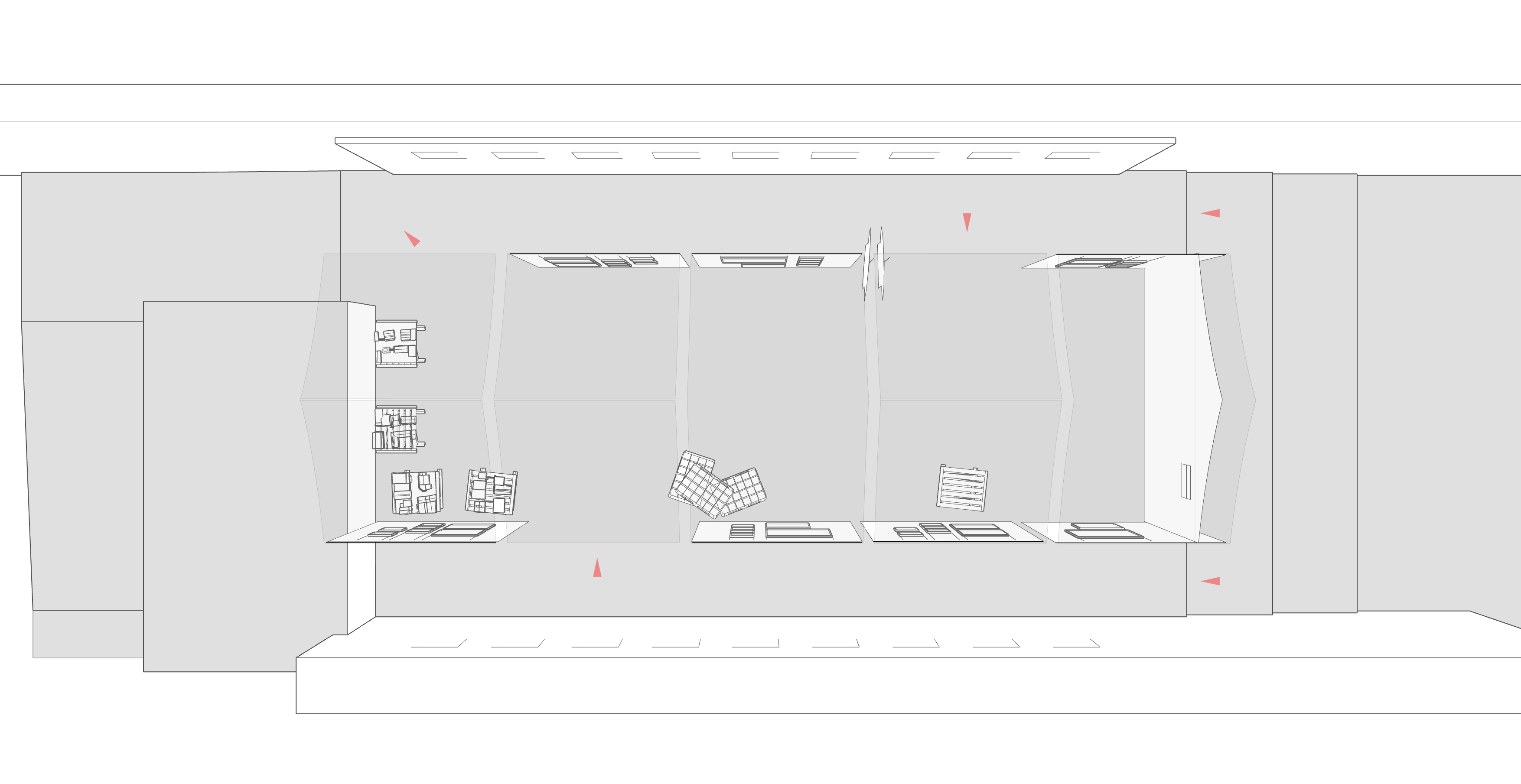

︎ 平面安排,Plan Arrangement

项目名称:胡同主义展览空间 HUTONGism 设计时间:2019年春 Spring 2019 项目地址:美国,纽黑文 New Haven, USA
建筑面积:40 m2
